Zoyi: ZT-703S: 3-in-1 Handheld Digital Oscilloscope and Multimeter

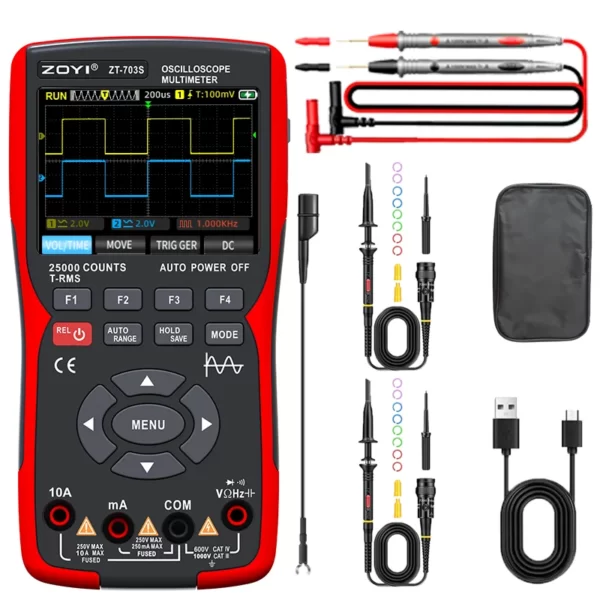

Product image 1
1 / 5

Zoyi: ZT-703S: 3-in-1 Handheld Digital Oscilloscope and Multimeter

ZT-703S: Automotive Troubleshooting Multimeter and Oscilloscope

Experience the versatility of the ZT-703S, a cutting-edge 3-in-1 handheld digital oscilloscope and multimeter. Seamlessly transition between oscilloscope, multimeter, and signal generator modes, offering unparalleled measurement capabilities for various applications. With features like automatic waveform acquisition, precise measurements, and convenient data storage, this device is ideal for professionals and enthusiasts alike. Its compact design, user-friendly interface, and robust functionality make it a must-have tool for electronics testing, troubleshooting, and more.

General Specifications：

Display：305 inch IPS full viewing angle color screen

Ranging：Auto/Manual

Material：ABS+TPE

Update Rate：3 Times/Second

Ture RMS：yes

Data Hold：yes

Backlight：yes

Low Battery Indication：yes

Auto Power Off：yes

Dimension：177*89*40mm

Weight:：345g(NO BATTERY)

Battery Type：18650 Battery * 1

Oscilloscope Specifications：

Bandwidth：50MHZ

Sampling method：real-time sampling

real-time sample rate：280MSa/s

Channels：2

input coupling：AC/DC

input resistance：1MΩ,@16pf

Probe attenuation：X1, X10

Max input voltage：300V (DC+AC peak)

Sample rate range：1.5Sa/s – 280MSa/s

Waveform interpolation：(sinx)x

Sweep speed range：10ns/div – 20s/div

Time Base Accuracy：20ppm

record length：Max 128Kbyte

sensitivity：20mV/div – 10V/div

Displacement range：4 cells (positive and negative)

Analog Bandwidth：50MHZ

low frequency response：>10HZ

Rise Time：<10ns

DC Gain Accuracy：±3%

Multimeter Specifications：

DC Voltage (V)：1000.0mV/250.00V/25.000V/2.5000V

DC Voltage (mV):250.00mV/25.00mV

AC Voltage (V):750.0V/250.00V/25.000V/2.5000V

AC Voltage (mV):250.00mV/25.00mV

*Frequency response of ACV: 40Hz-1kHz

DC Current (A):10.000A/2.5000A

DC Current (mA):25.000mA/250.00μA

AC Current (A):10.000A/2.5000A

AC Current (μA/mA):25.000mA/250.00μA

Frequency response of AC Current: 40Hz-1kHz

Resistance：250.00Ω/2.5000kΩ/25.000kΩ/250.00kΩ/2.5000MΩ/25.000MΩ/250.0MΩ

Capacitance:  9.999nF/ 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF

Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz

Diode ：yes

    ZT-703S: Automotive Troubleshooting Multimeter and Oscilloscope

    Experience the versatility of the ZT-703S, a cutting-edge 3-in-1 handheld digital oscilloscope and multimeter. Seamlessly transition between oscilloscope, multimeter, and signal generator modes, offering unparalleled measurement capabilities for various applications. With features like automatic waveform acquisition, precise measurements, and convenient data storage, this device is ideal for professionals and enthusiasts alike. Its compact design, user-friendly interface, and robust functionality make it a must-have tool for electronics testing, troubleshooting, and more.

    General Specifications：

    Display：305 inch IPS full viewing angle color screen

    Ranging：Auto/Manual

    Material：ABS+TPE

    Update Rate：3 Times/Second

    Ture RMS：yes

    Data Hold：yes

    Backlight：yes

    Low Battery Indication：yes

    Auto Power Off：yes

    Dimension：177*89*40mm

    Weight:：345g(NO BATTERY)

    Battery Type：18650 Battery * 1

    Oscilloscope Specifications：

    Bandwidth：50MHZ

    Sampling method：real-time sampling

    real-time sample rate：280MSa/s

    Channels：2

    input coupling：AC/DC

    input resistance：1MΩ,@16pf

    Probe attenuation：X1, X10

    Max input voltage：300V (DC+AC peak)

    Sample rate range：1.5Sa/s – 280MSa/s

    Waveform interpolation：(sinx)x

    Sweep speed range：10ns/div – 20s/div

    Time Base Accuracy：20ppm

    record length：Max 128Kbyte

    sensitivity：20mV/div – 10V/div

    Displacement range：4 cells (positive and negative)

    Analog Bandwidth：50MHZ

    low frequency response：>10HZ

    Rise Time：<10ns

    DC Gain Accuracy：±3%

    Multimeter Specifications：

    DC Voltage (V)：1000.0mV/250.00V/25.000V/2.5000V

    DC Voltage (mV):250.00mV/25.00mV

    AC Voltage (V):750.0V/250.00V/25.000V/2.5000V

    AC Voltage (mV):250.00mV/25.00mV

    *Frequency response of ACV: 40Hz-1kHz

    DC Current (A):10.000A/2.5000A

    DC Current (mA):25.000mA/250.00μA

    AC Current (A):10.000A/2.5000A

    AC Current (μA/mA):25.000mA/250.00μA

    Frequency response of AC Current: 40Hz-1kHz

    Resistance：250.00Ω/2.5000kΩ/25.000kΩ/250.00kΩ/2.5000MΩ/25.000MΩ/250.0MΩ

    Capacitance:  9.999nF/ 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF

    Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz

    Diode ：yes

      $25.95

      Original: $86.50

      -70%
      Zoyi: ZT-703S: 3-in-1 Handheld Digital Oscilloscope and Multimeter—

      $86.50

      $25.95
